- eOpic
- 4

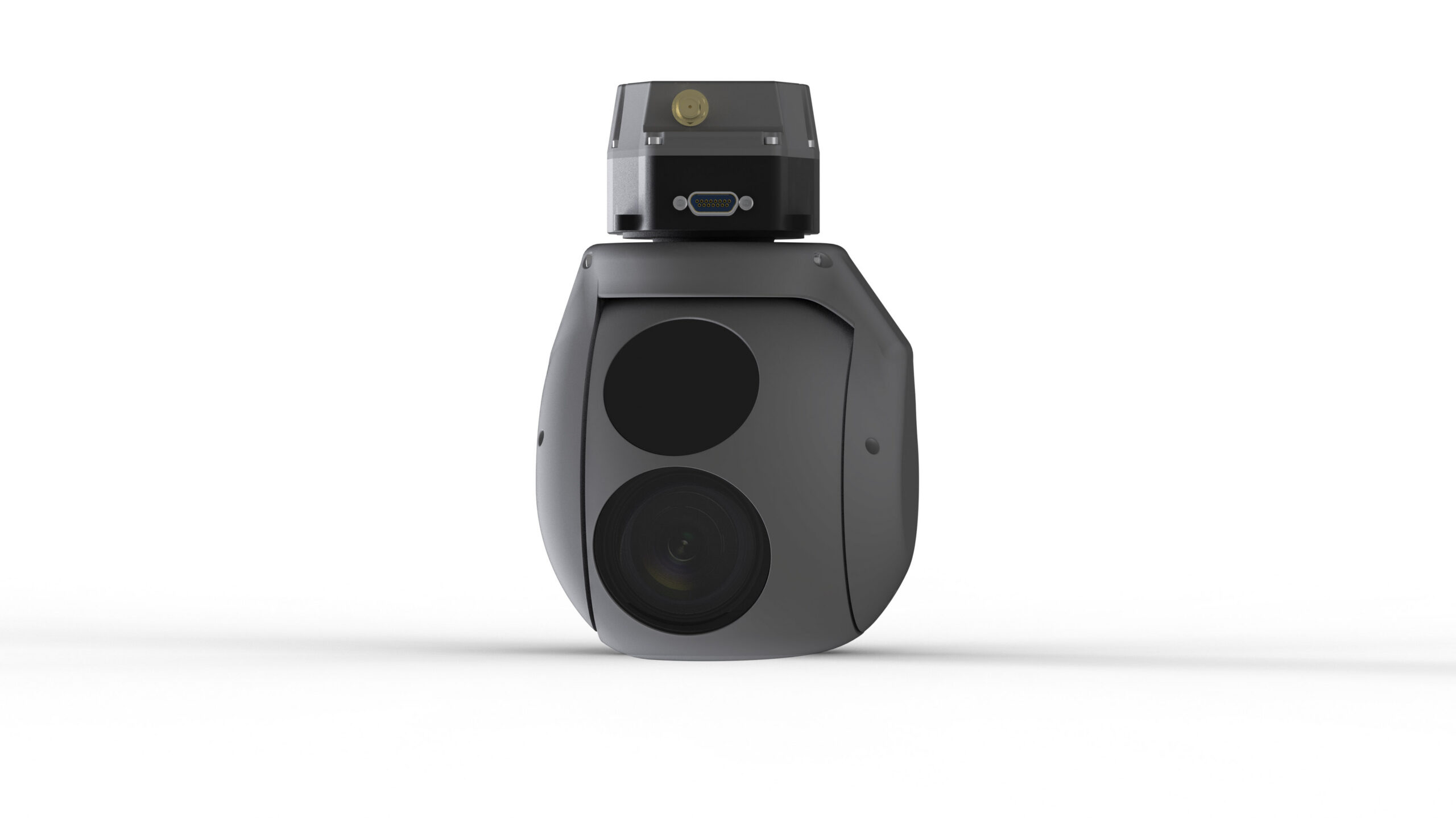

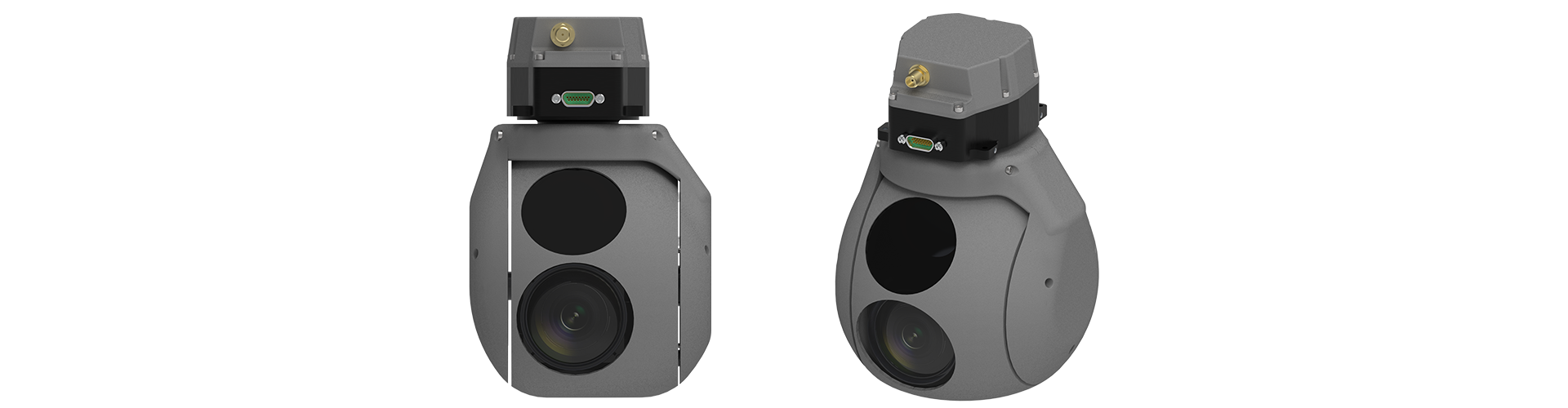

4-inch EO/IR payload
The eOpic-4 is a light-weight dual-axis gyro-stabilized electro-optical system designed for advanced ISR missions.
EOPIC-4 KEY FEATURES
- EO/IR Payload
- Integrated INS
- Fully featured mission software
- STANAG 4609
- Georeferenced imagery
- Automatic target tracking
SYSTEM FEATURES BREAKDOWN
eOpic-4 technical specifications
Download onepager (opens in a new tab)Imaging payload
-
Type: 2-axis gyro-stabilized
GPS: GPS L1, Galileo, SBAS -
Features on-board
Automatic target tracking
Scene tracking
Geo-pointing
Picture-in-picture
Visible camera
-
Type: Global Shutter CMOS
Resolution: 1920 x 1080 p
FOV: 43.5° – 2.3°
Zoom: 28x optical zoom, 4x digital zoom
-
DRI human: 25 km / 12.5 km / 6 km
DRI vehicle: 31 km / 21.5 km/ 14.5 km
Thermal image
-
Type: LWIR
Resolution: 1280 x 1024 p
FOV: 24°
Zoom: 4x digital zoom
-
DRI human: 2 200 m / 750 m / 370 m
DRI vehicle: 6 000 m / 2 500 m / 1 400 m
Video
-
Resolution: 1920 x 1080 p, 30 fps
Video encoding: MPEG4 AVC H.264
Metadata: STANAG 4609 (KLV)
Video stream: MPEG-TS
