- Eos
- D
- VTOL
LASER DESIGNATION AND RECONNAISSANCE MISSIONS

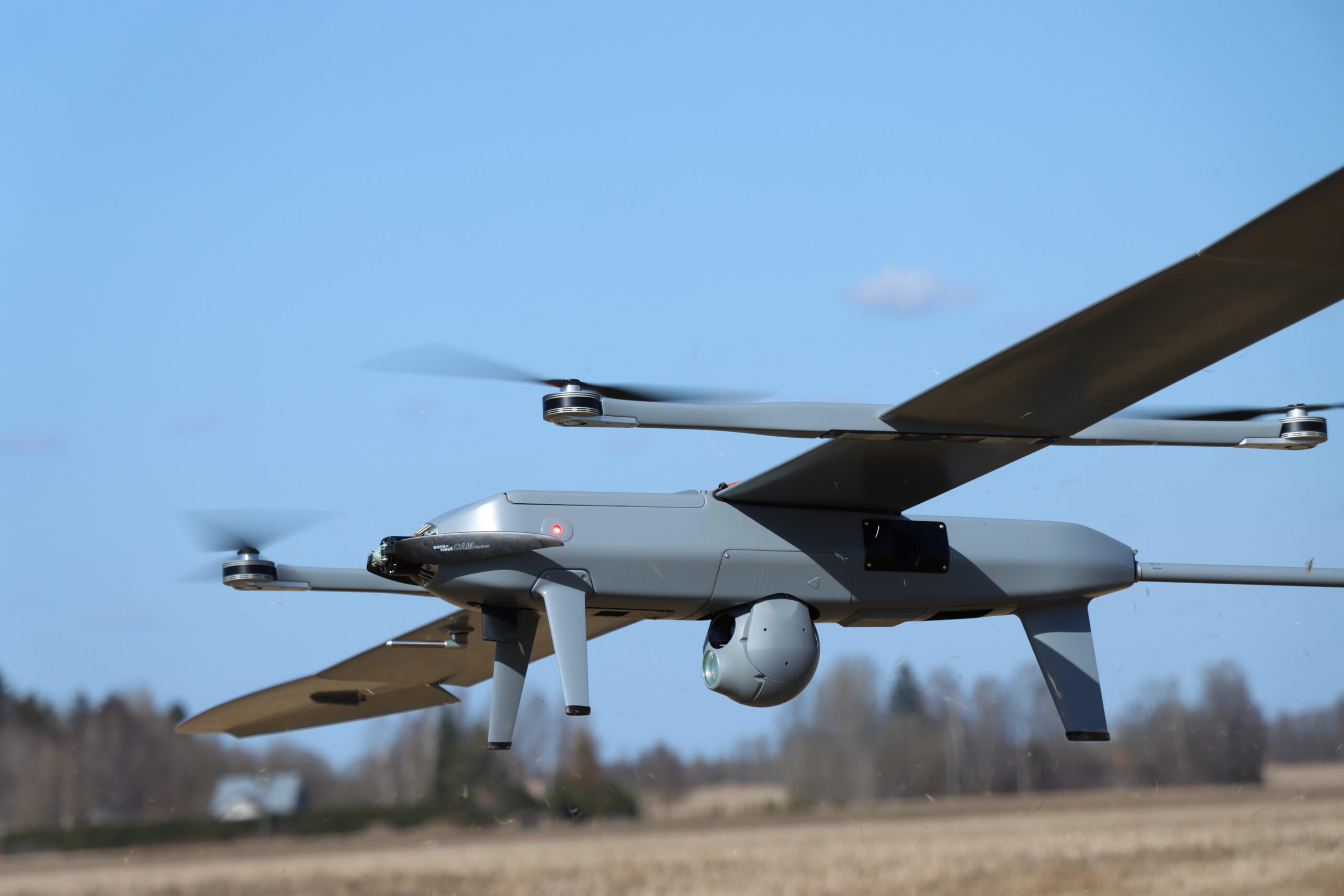

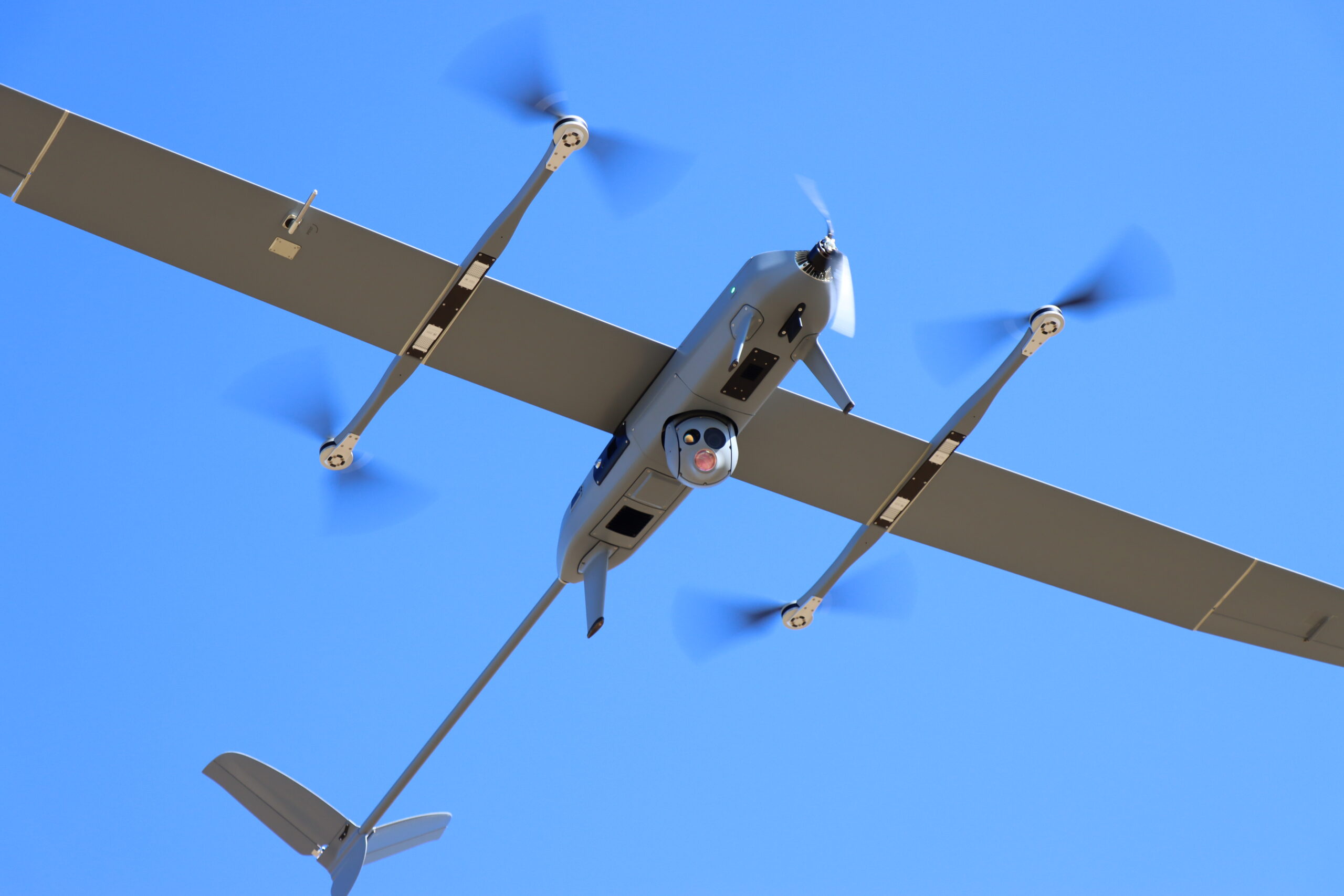

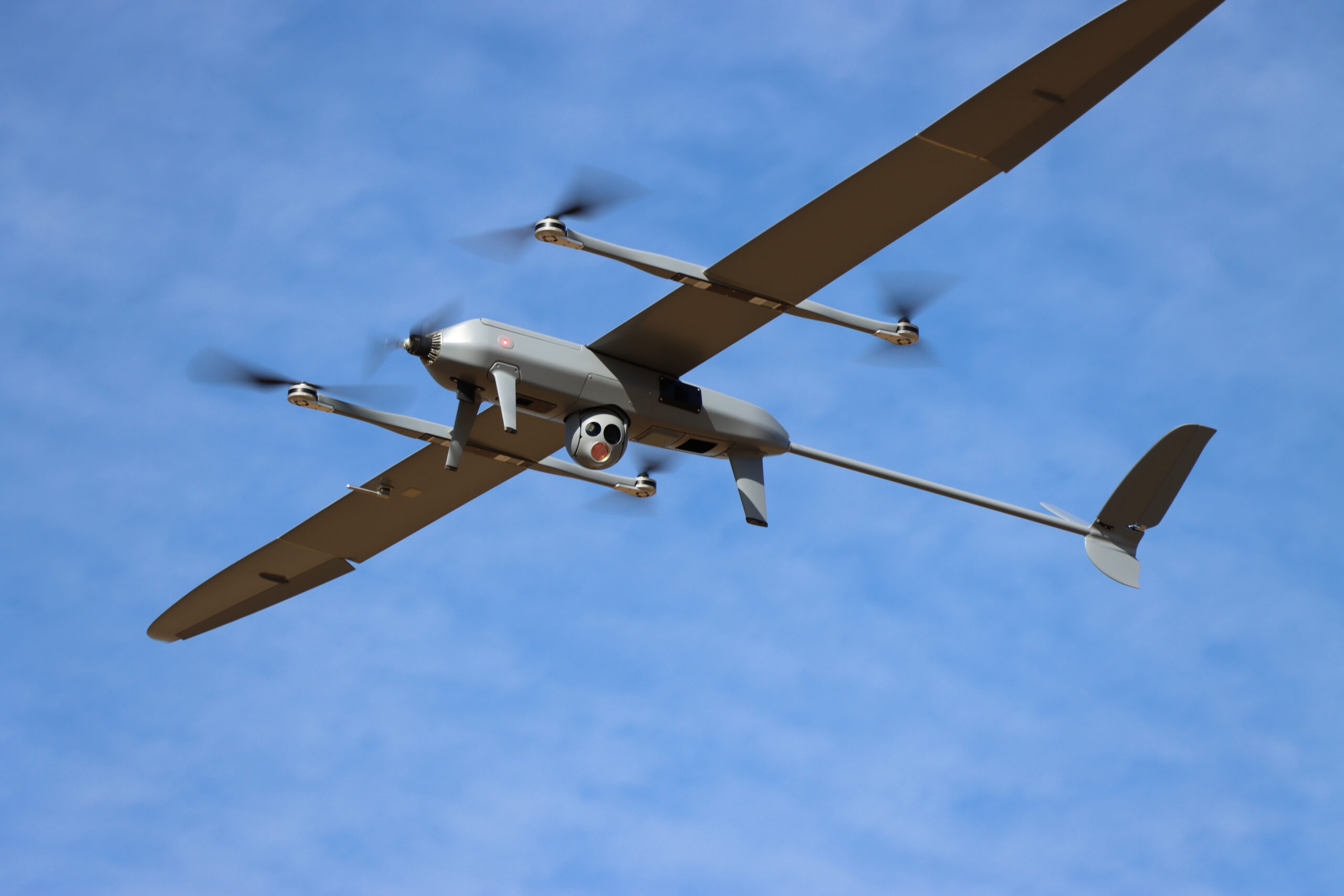

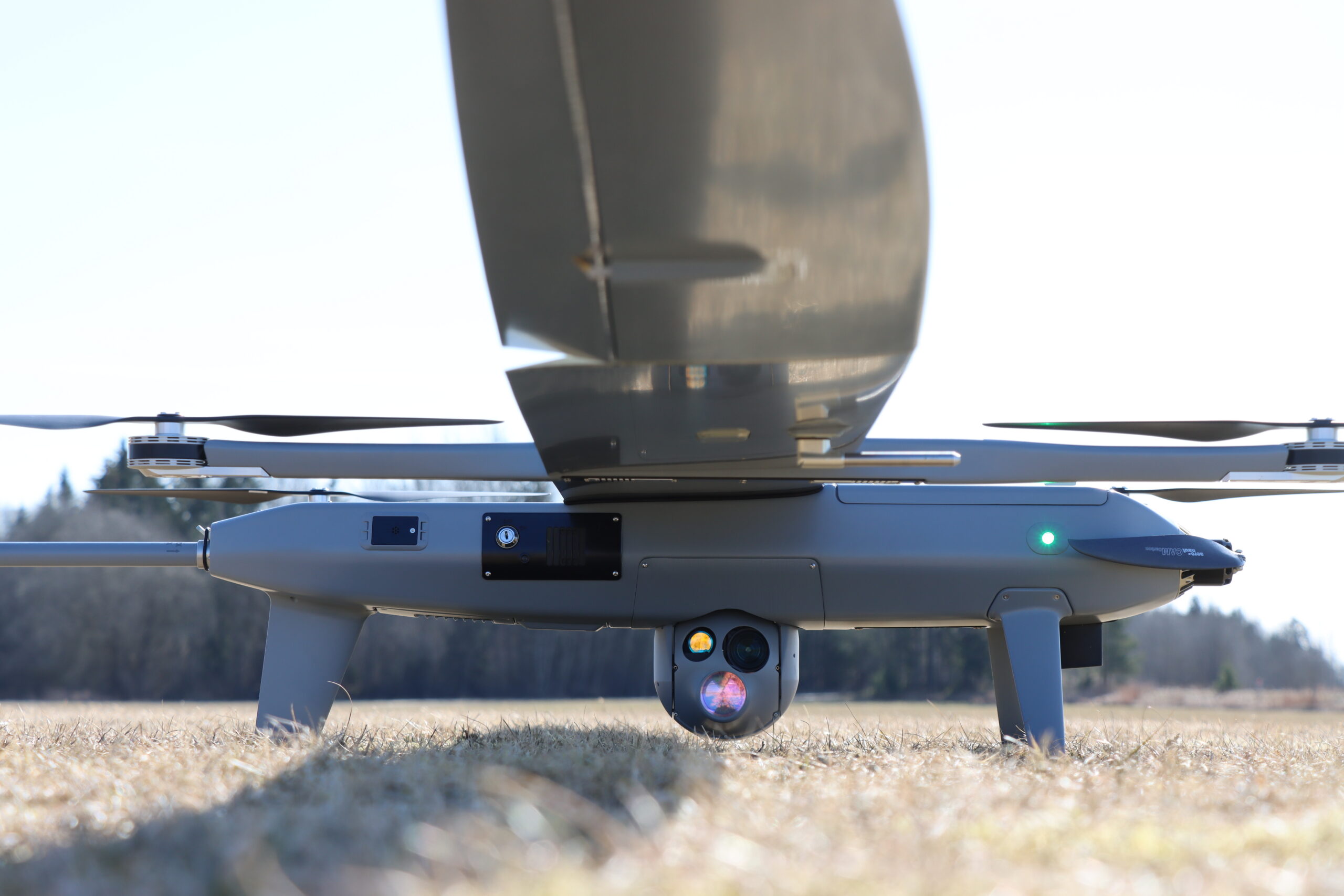

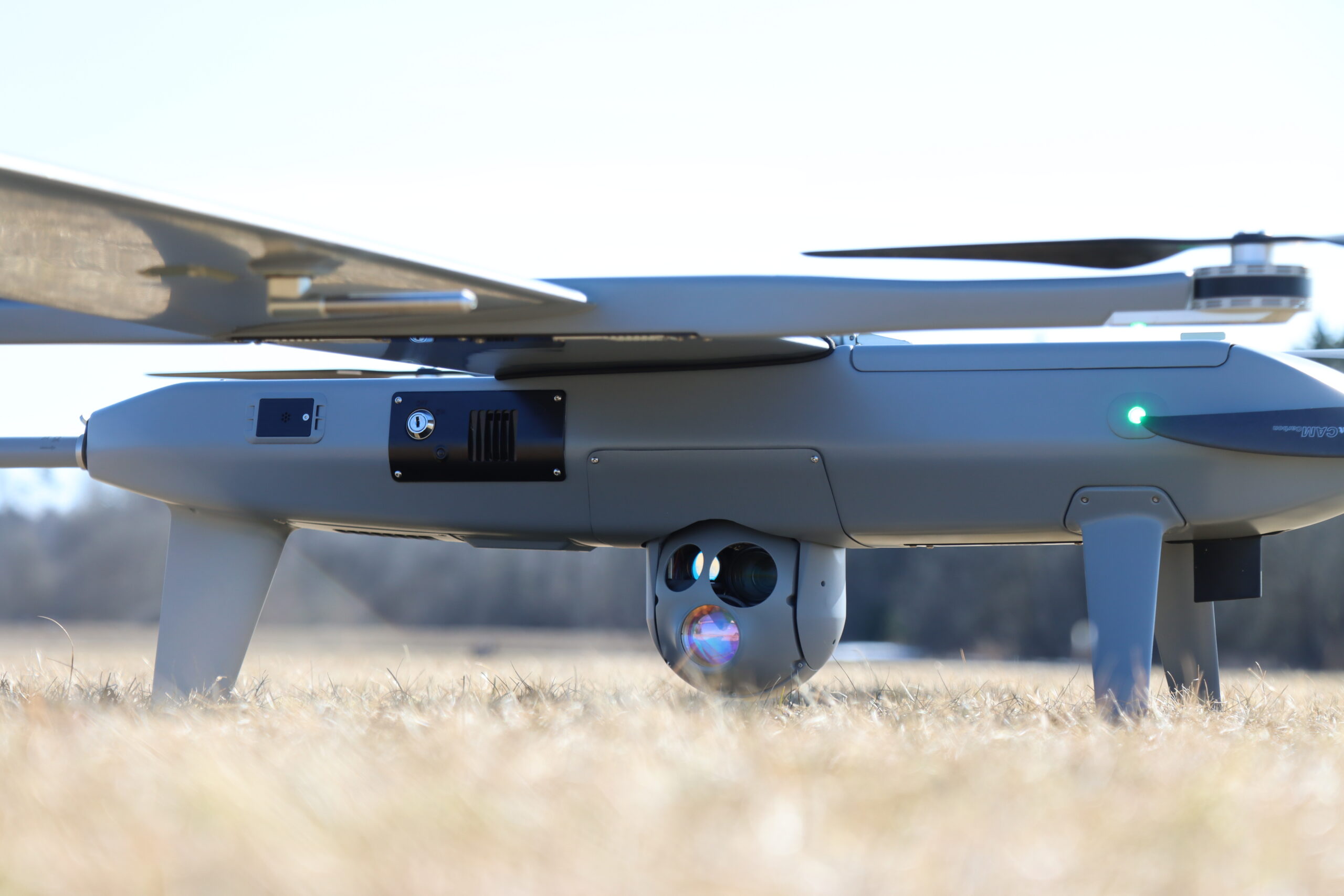

Eos D VTOL is a new-generation small, unmanned aircraft system that combines a lightweight aircraft with a high-capability sensor system, bringing precision-support functions typically associated with larger platforms into a readily deployable solution for tactical units.
Built from operational experience
Laser designation capability in a compact footprint
Precision support at tactical level
Resilient operations in contested environments
EOS D VTOL KEY FEATURES
Low-signature operations
- Altitude up to 4,500 m
- Fully electric platform
Resilient onboard navigation
- In-house developed autopilot
- Interference and spoofing detection
Persistent mission reach
- Endurance up to 3 h with 2 kg payload
- Mission range up to 190 km

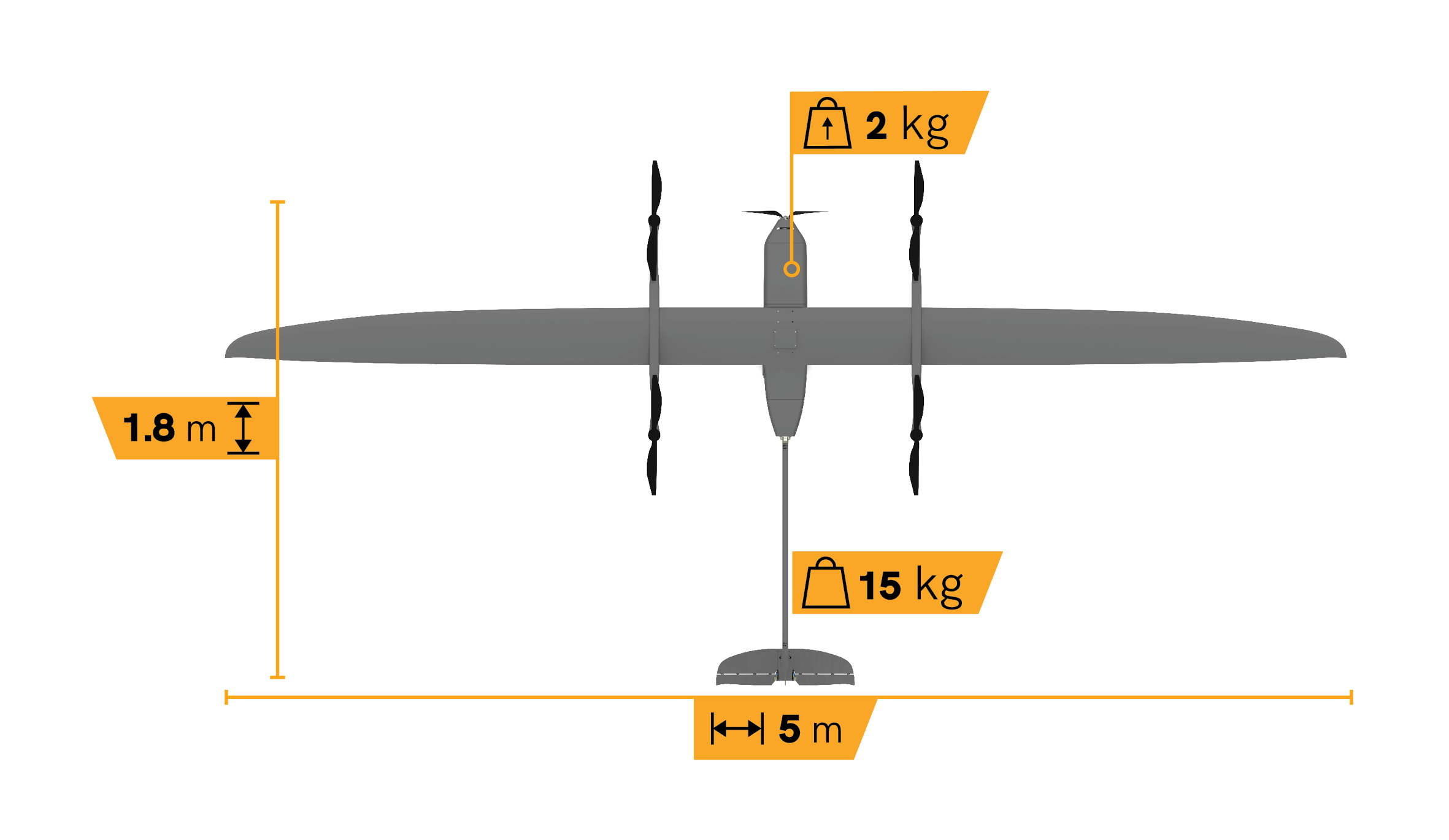

Technical specifications
Download catalogue (opens in a new tab)Performance
-
Flight parameters

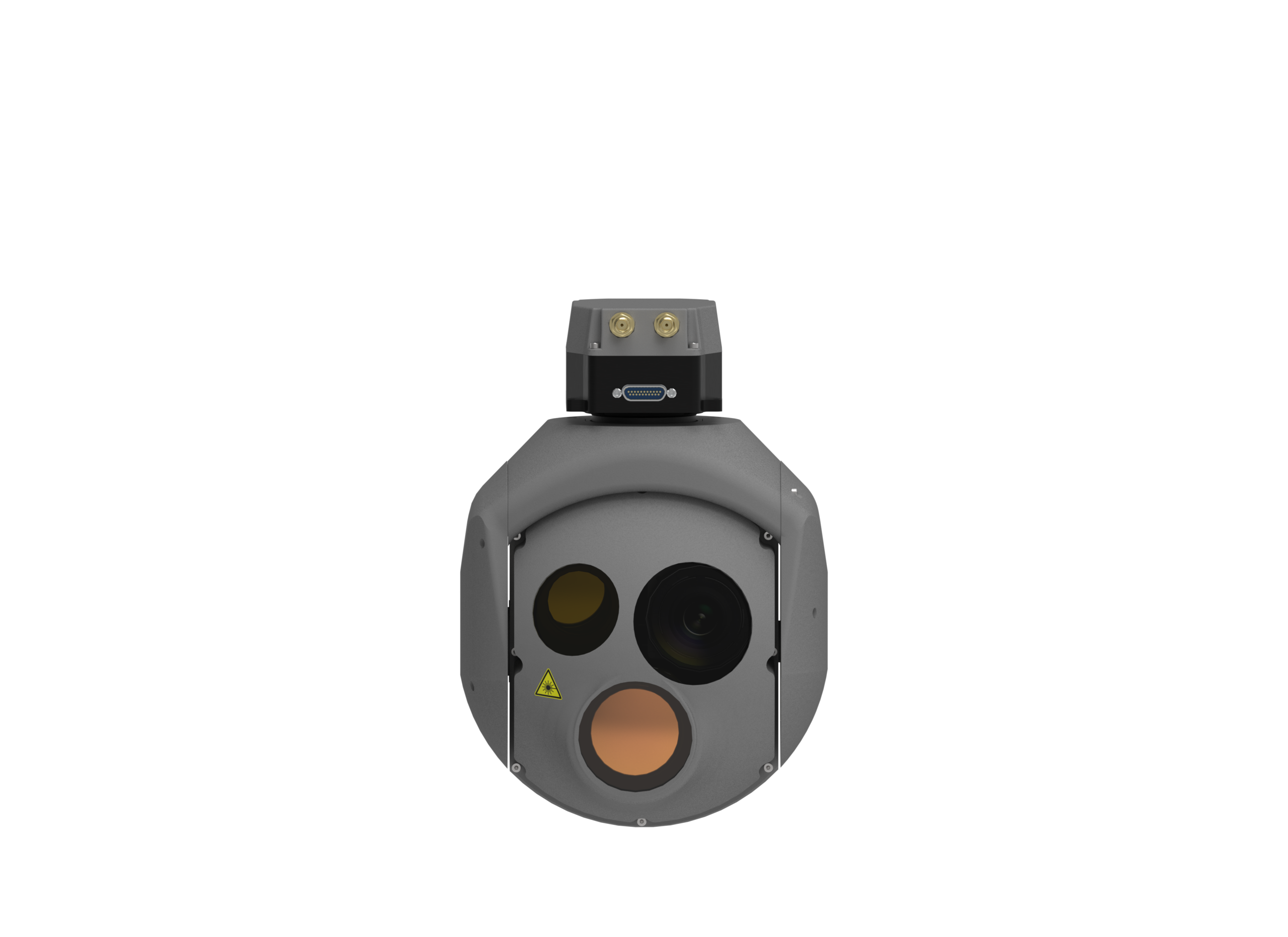

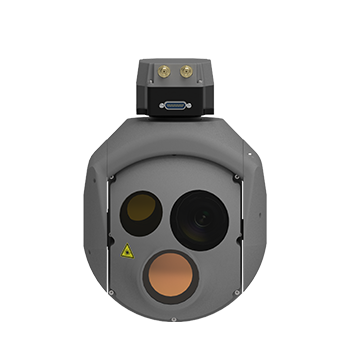

Endurance: up to 3 h with eOpic-6 payload
Maximum distance: 190 km
Communication range: 50 km (RLOS) -
Speed parameters
Cruise speed 61 km/h
Max speed 90 km/h -
Altitude parameters
Service ceiling (AMSL) 4 500 m
Max takeoff altitude (AMSL) 3 500 m
Communication
-
Communication
Radio options Silvus, Kongsberg, DTC
Encryption AES-256
Range up to 50 km RLOS
Type: digital, MIMO / MANET / MESH -
Anti-jamming
Interference cancellation
Interference avoidance
GNSS-independent navigation
Optional anti-jamming system with CRPA antenna
Flight Control
-
Autopilot
Fully autonomous
Waypoint navigation
Fly-by-camera mode
Geo-fencing -
Safety
Programmable failsafe routes
Automatic return to home
-
Failsafe routes
Dead reckoning
Continuous health monitoring
Servo and ESC feedback
Operational
-
Deployment
Vertical takeoff and landing
Obstacle-free area, 10 × 10 m -
Instrumentation
GPS / GLONASS / GALILEO
Barometric and radar altimeter
Inertial Navigation System (INS)
Servo feedback and logging
ESC telemetry and logging -
Air Traffic Control Transponder
Optional Mode-S / ADS-B Out
-
Visibility
LED navigation and anti-collision lights
IR strobe / light
