- eOpic
- 8

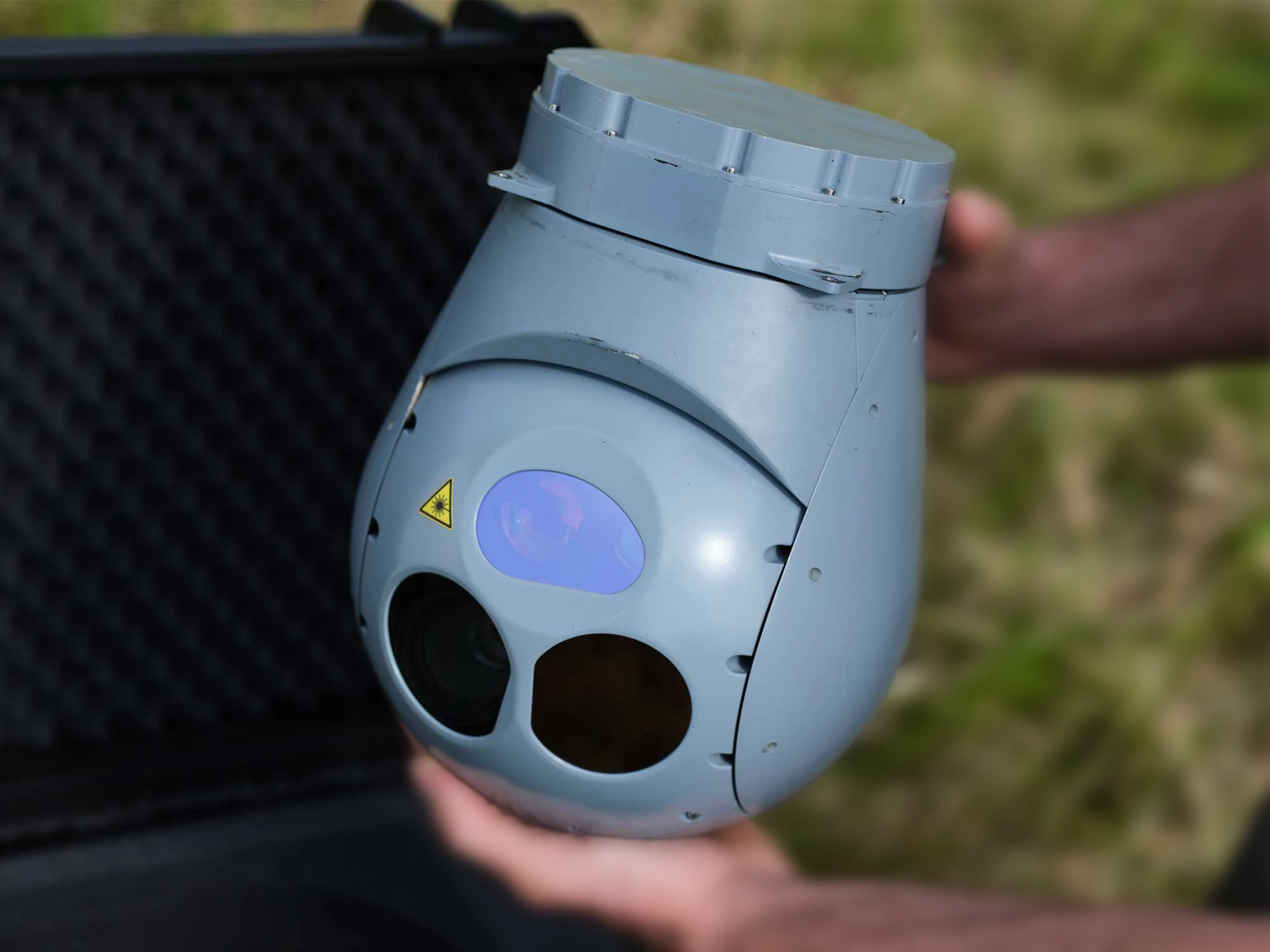

8-inch ISR and ISTAR payload

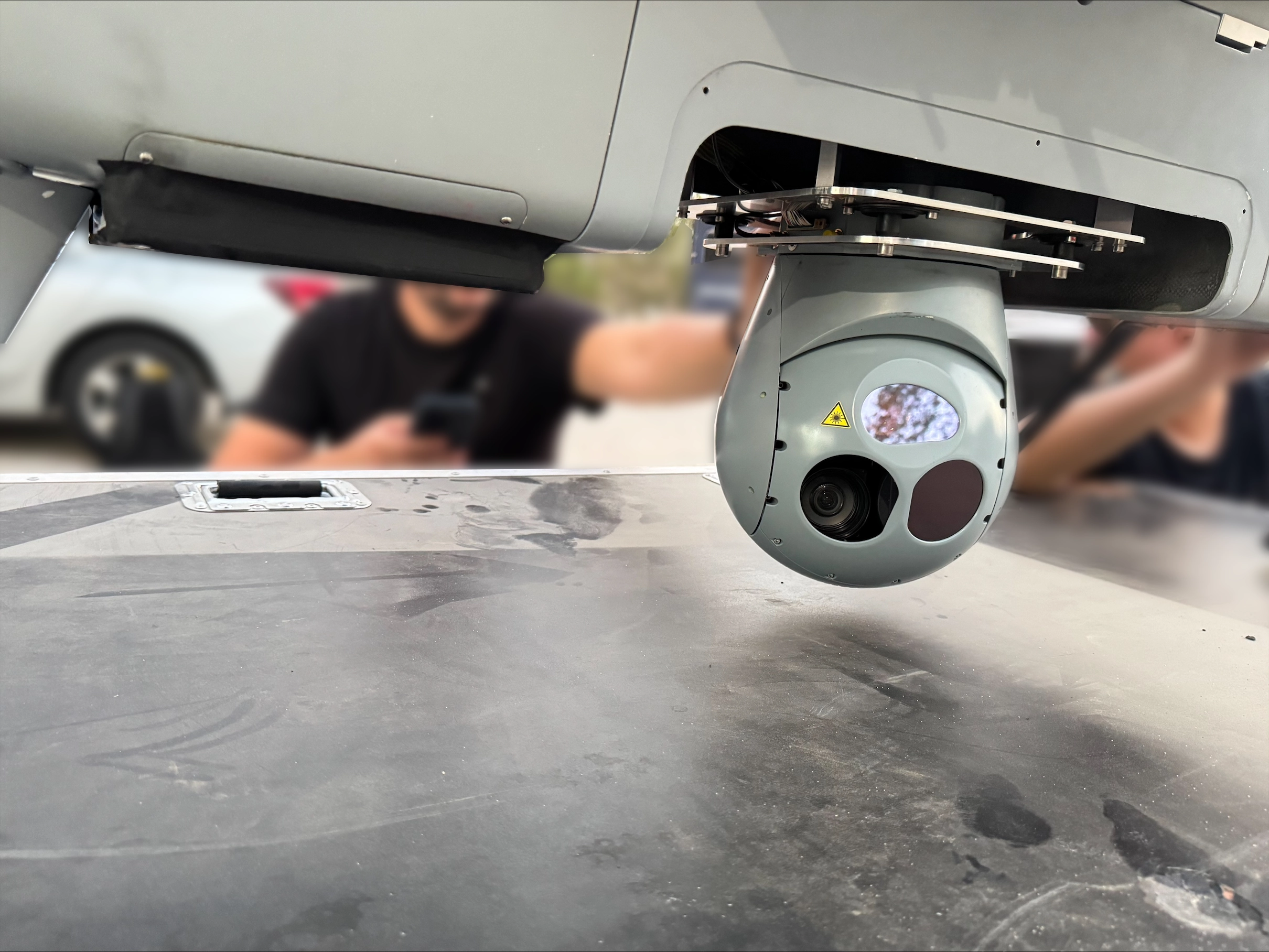

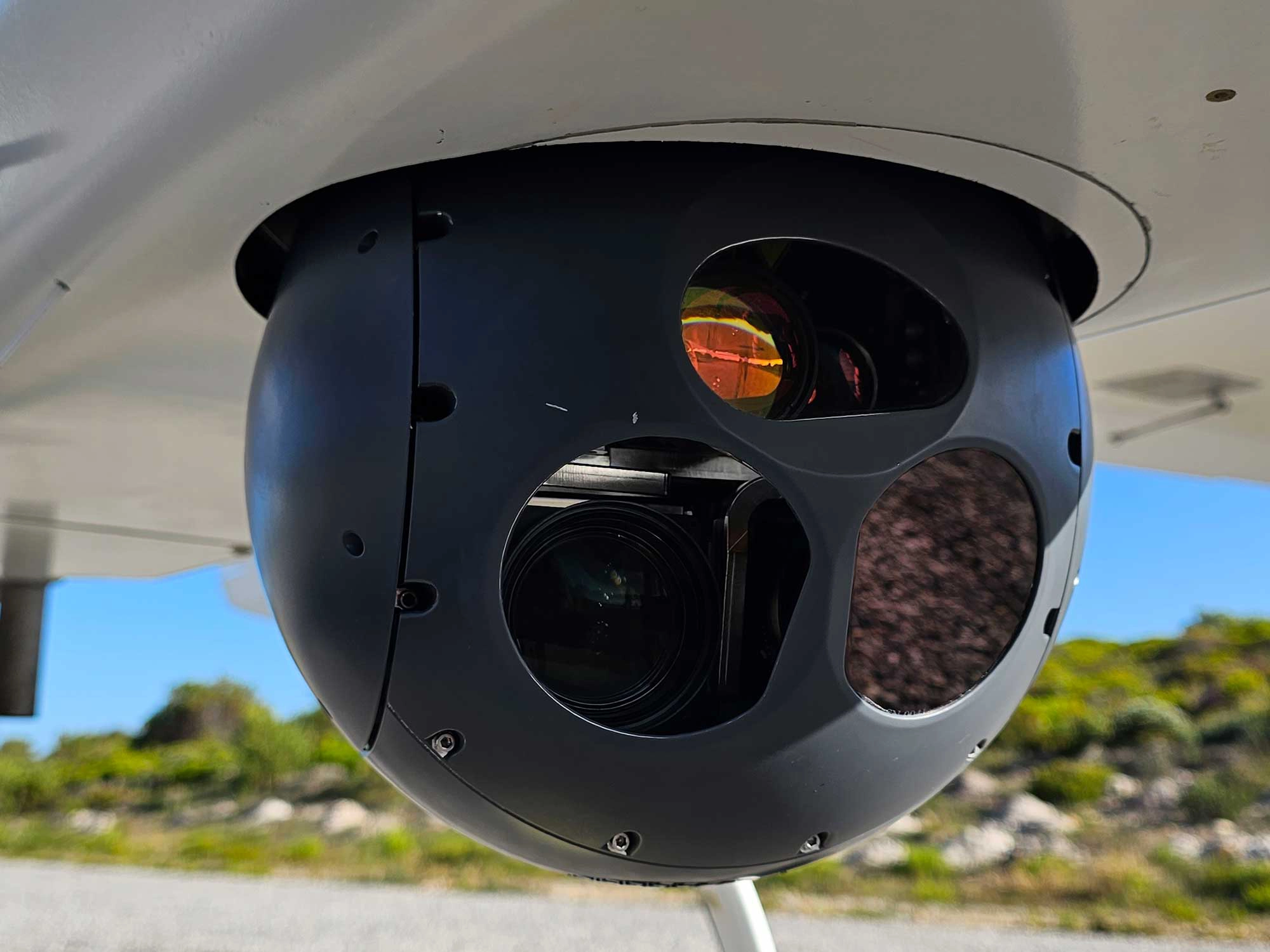

The 8-inch payload family is designed for long-range reconnaissance and targeting missions on group-2 and group-3 UAS, and manned aircrafts enabling to detect, track and engage threats day and night.
KEY FEATURES

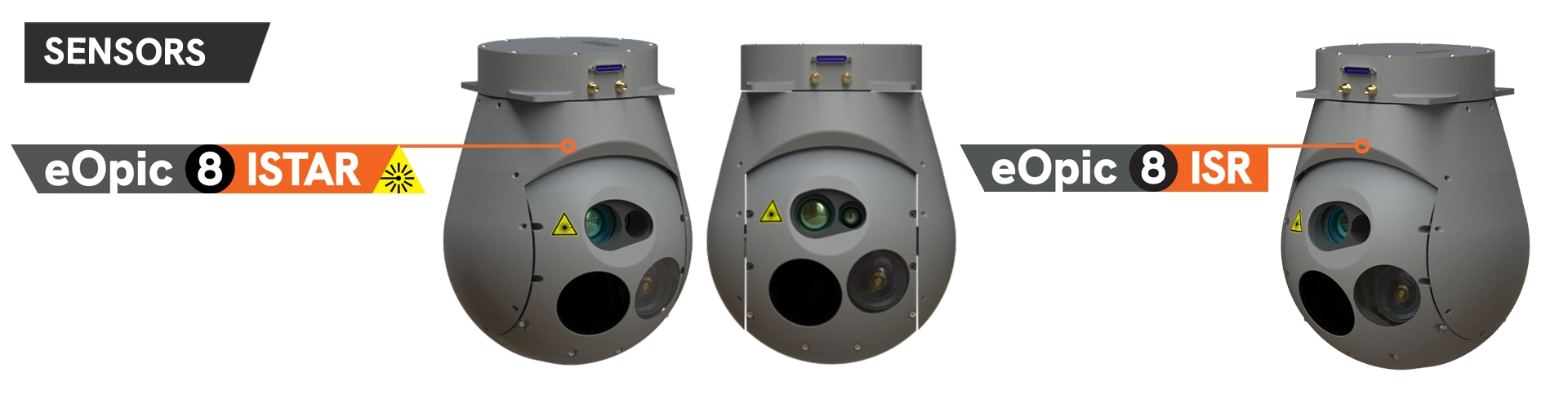

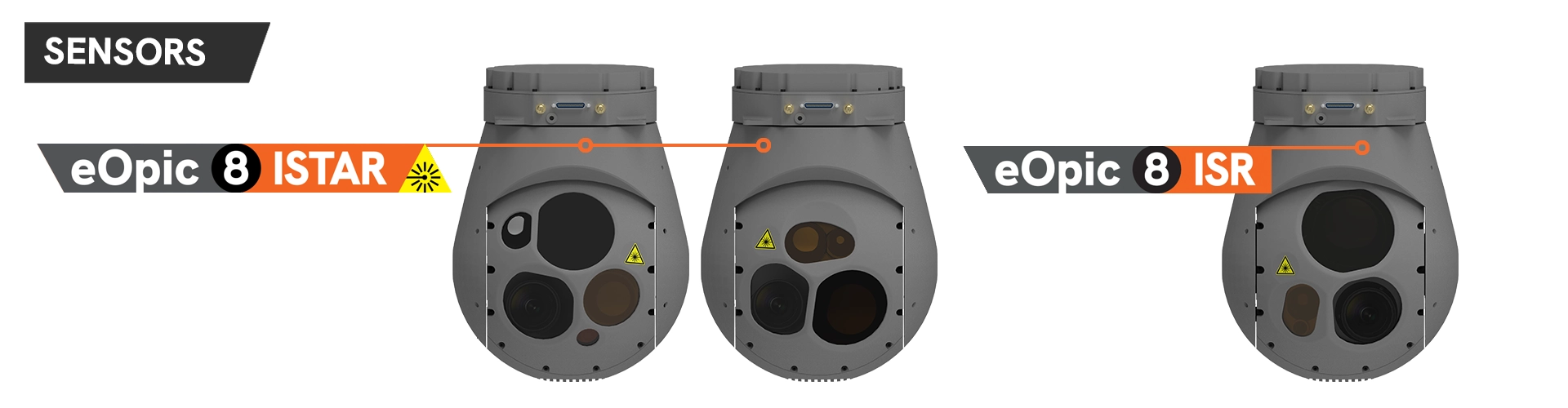

ISTAR configuration
- Weight 6.2 kg
- 36x zoom visible camera
- Multiple infrared sensor options
- Laser target designator power options
ISR configuration
- Weight 5.2 kg
- 36x zoom visible camera
- Continuous zoom MWIR thermal imager
- Laser range finder
High-capability
- ITAR-free
- Allied-compatible STANAG 3733
- Fully featured mission software
- For UAS and manned aircrafts
SYSTEM FEATURES BREAKDOWN
ISTAR technical specifications
Download onepager (opens in a new tab)Visible sensor
-
Global Shutter CMOS
Resolution: 1920 × 1080
FOV: 52° – 1.95°
Zoom: 36x optical zoom, 4x digital zoom
Wavelength 435 nm < FWHM < 680 nm
DRI human: 26 / 15 / 8.5 km
DRI vehicle: 32.5 / 23.5 / 16.9 km
Infrared sensor
-
MWIR thermal imager
Resolution: 640 x 512 p
FOV: 20° – 1.6°
Zoom: 13x optical, 4x digital
DRI human: 10 / 4 / 2 km
DRI vehicle: 17 km / 9.3 km / 5.6 km -
SWIR see-spot imager
Resolution: 1280 x 1024
FOV: 4.1°
Zoom: fixed optical, 4x digital
DRI human: 11.5 / 5 / 2.5 km
DRI vehicle: 19 / 10.7 / 6.7 km
Laser target designator
-
Diode pumped
Wavelenght: 1064 nm
Power: > 50 mJ
Repetition rate: 8 – 22 Hz
Divergence: ≤ 400 μRad
Code compatibility: STANAG 3733 or user defined
Target range:
Vehicle: > 4.5 km
Extended: > 8 km -
Diode pumped
Wavelenght: 1064 nm
Power: > 70 mJ
Repetition rate: 8 – 22 Hz
Divergence: ≤ 400 μRad
Code compatibility: STANAG 3733 or user defined
Target range:
Vehicle: > 4.5 km
Extended: > 8 km
Laser range finder
-
Eye-Safe
Wavelenght: 1572 nm
Laser class: Class 1
Measurement rate: 1 – 10 Hz
Divergence: ≤ 700 μRad
Range: 15 km -
Non-Eye-Safe
Wavelenght: 1064 nm
Laser class: Class 4
Measurement rate: 8 – 22 Hz
Divergence: ≤ 400 μRad
Range: 16.5 km -
Non-Eye-Safe
Wavelenght: 1064 nm
Laser class: Class 4
Measurement rate: ≤ 20 Hz
Divergence: < 400 μRad
Range: TBD
Video
-
Resolution: 1920 x 1080, 30 fps
Video encoding: MPEG4 AVC H.264 / H.265
Metadata: STANAG 4609 (KLV), CoT
Video stream: MPEG-TS
Physical
-
Parameters
Weight: 6.2 kg
Height: 290 mm
Diameter: 220 mm
ISR technical specifications
Visible sensor
-
Global Shutter CMOS
Resolution: 1920 × 1080
FOV: 52° – 1.95°
Zoom: 36x optical zoom, 4x digital zoom
Wavelength 435 nm < FWHM < 680 nm
DRI human: 26 / 15 / 8.5 km
DRI vehicle: 32.5 / 23.5 / 16.9 km
Infrared sensor
-
MWIR thermal imager
Resolution: 640 x 512 p
FOV: 20° – 1.6°
Zoom: 13x optical, 4x digital
DRI human: 10 / 4 / 2 km
DRI vehicle: 17 km / 9.3 km / 5.6 km
Laser range finder
-
Eye-Safe
Wavelenght: 1535 nm
Laser class: Class 1
Measurement rate: ≤ 6 Hz
Divergence: < 1 mRad
Range: 8 km
Video
-
Resolution: 1920 x 1080, 30 fps
Video encoding: MPEG4 AVC H.264 / H.265
Metadata: STANAG 4609 (KLV), CoT
Video stream: MPEG-TS
Physical
-
Parameters
Weight: 5.2 kg
Height: 290 mm
Diameter: 220 mm
