6-inch ISR and ISTAR payload

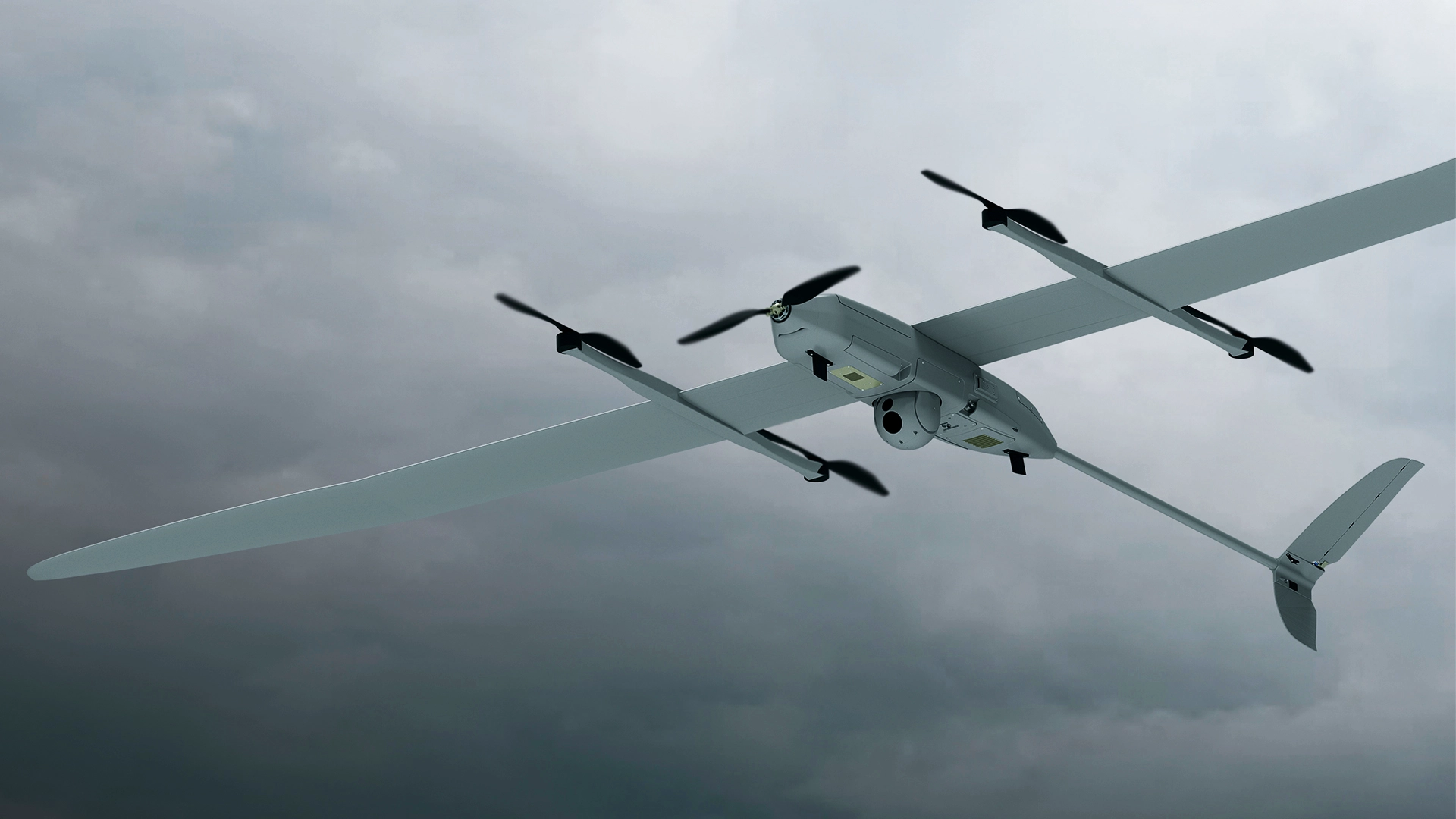

The 6-inch payload family is designed for reconnaissance and targeting missions on lightweight unmanned platforms. It offers [MK18.1]advanced imaging, onboard video processing, and integrated inertial navigation into a compact payload, with STANAG-compliant laser designation available for precision-support missions.
EOPIC-6 KEY FEATURES
- ISR and ISTAR configurations
- Laser target designator STANAG 3733 compliant
- ITAR free
- Integrated INS
- Continuous zoom LWIR thermal imager
- SWIR see-spot option
- STANAG 4609
- Fully featured mission software
- Automatic target tracking
- Georeferenced imagery
SYSTEM FEATURES BREAKDOWN

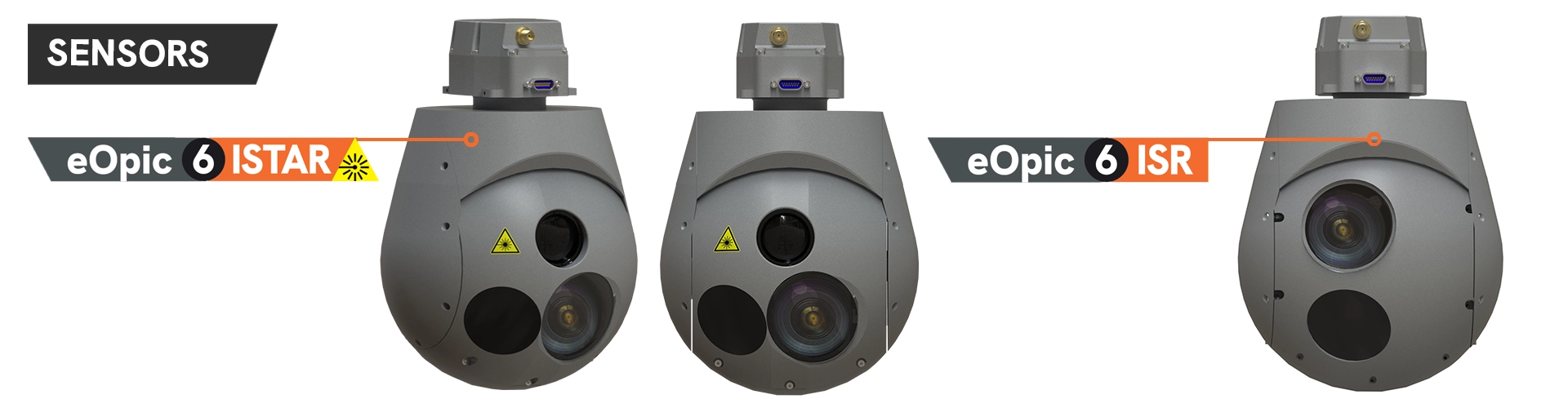

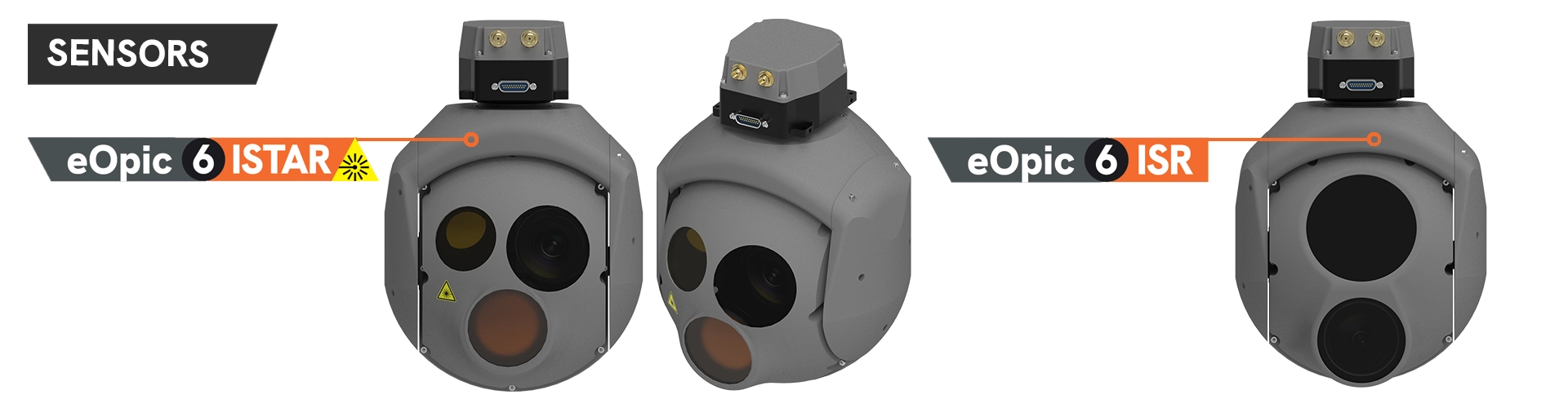

eOpic-6 ISTAR
6-inch payload family (opens in a new tab)Visible sensor
-
Global Shutter CMOS
Resolution: 1920 x 1080 p
FOV: ISTAR 43.5° – 2.3° / ISR 55.6° – 1.59°
Zoom: 28x optical, 4x digital
DRI
Human 25 / 12.5 / 6 km
Vehicle 31 / 21.5 / 14.5 km
Laser
-

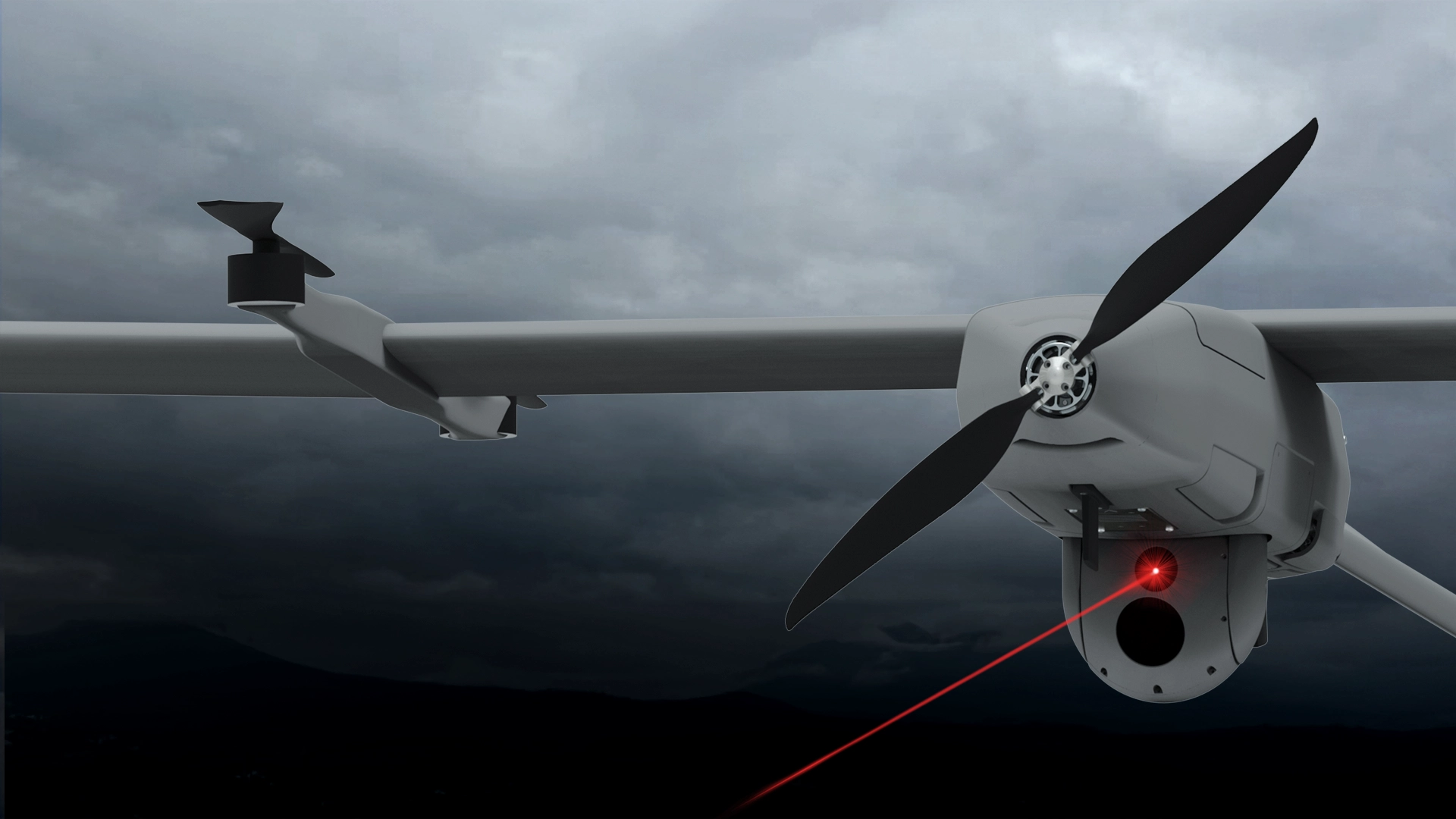

Laser target designator
Power: 50 mJ
Wavelength: 1064 nm
Repetition rate: 8 – 22 pulse / sec
Divergence: ≤ 0.5 mRad
Target range: vehicle 3 km / extended 8 km
Code compatibility: STANAG 3733 or user defined
Infrared sensor
-
SWIR see-spot
Resolution: 1296 x 1024 p
FOV: 4.1°
Zoom: optical fixed / digital 4x
DRI human 11.5 / 5 / 2.5 km
DRI vehicle 19 / 10.7 / 6.7 km
Video
-
Resolution: 1920 x 1080 p, 30 fps
Video encoding: MPEG4 AVC H.264 / H.265
Metadata: STANAG 4609 (KLV), CoT
Video stream: MPEG-TS
eOpic-6 ISR
Visible sensor
-
Global Shutter CMOS
Resolution: 1920 x 1080 p
FOV: ISTAR 43.5° – 2.3° / ISR 55.6° – 1.59°
Zoom: 36x optical, 4x digital
DRI
Human 26 / 15 / 8.5 km
Vehicle 32.5 / 23.5 / 16.9 km
Laser
-
Laser range finder
Power: Class 1
Wavelength: 1500 nm
Repetition rate: N/A
Divergence: 1.6 mRad
Target range: vehicle 4 km / extended 11 km
Code compatibility: N/A
Infrared sensor
-
LWIR thermal imger
Resolution: 640 x 512 p
FOV: 30°-6
Zoom: optical 5x / digital 8x
DRI human 26 / 15 / 8.5 km
DRI vehicle 32.5 / 23.5 / 16.9 km
Video
-
Resolution: 1920 x 1080 p, 30 fps
Video encoding: MPEG4 AVC H.264 / H.265
Metadata: STANAG 4609 (KLV), CoT
Video stream: MPEG-TS
